ToF 3D Cameras and 3D Sensing Cameras: A Comprehensive Look at Their Components and Advantages

Jul 31, 2023

With the rapid development of machine vision technology, 3D vision is changing the way industries operate by presenting detailed stereoscopic images that were once impossible with 2D vision. At the forefront of this field are ToF 3D cameras and 3D sensing cameras, which use various methods to obtain fast, accurate, and detailed depth images. In this article, we will explore the world of ToF 3D cameras and 3D sensing cameras, including their components, how they work, and the advantages that make them ideal for applications such as Face ID, mobile phones, VR/AR, industrial vision, and more. We will also take a closer look at our company Vzense, one of the leading brands in the 3D sensing camera market.

The Components of a ToF Camera

ToF cameras comprise several components, including the illumination unit, optical lens, imaging sensor, control unit, and calculation unit. The illumination unit pulse-modulates the light source before emission, with each light pulse lasting only a few nanoseconds. The frequency of the modulated light pulse can be as high as 100MHz, and the exposure time parameter of the camera determines the number of pulses per capture. Precise control of the light pulse is essential to achieve accurate measurement. The optical lens ensures that only light of the same wavelength as the illuminating light source enters by using a bandpass filter, reducing noise and preventing overexposure of the photosensitive sensor due to external light interference.

The imaging sensor comprises two or more shutters that sample reflected light rays at different times. The electronic control unit triggers the light pulse sequence in exact synchronization with the chip's electronic shutter opening/closing, reads and converts the sensor charge, and guides it to the analysis unit and data interface. Finally, the calculation unit records an accurate depth map that is usually a grayscale image where each value represents the distance between the light-reflecting surface and the camera.

Advantages of ToF 3D Cameras

The advanced components of ToF cameras allow them to capture complete scene depth information in a single shot without the need for scanning devices. This feature makes ToF cameras ideal for various applications such as Face ID, mobile phones, VR/AR, and industrial vision. They can provide unparalleled accuracy and speed, making them an indispensable tool in today's fast-paced world.

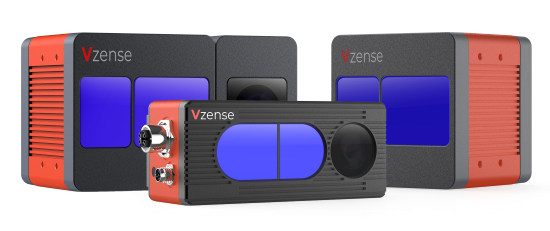

Vzense: A Leading Brand in 3D Sensing Camera Market

Vzense is one of the leading brands in the 3D sensing camera market, offering cutting-edge products that provide precise depth images and faster processing times. OurTheirToF cameras use advanced components, such as the illumination unit, optical lens, imaging sensor, control unit, and calculation unit, to deliver exceptional performance for different applications.


As technology continues to evolve, we can expect even more exciting applications for ToF 3D cameras and 3D sensing cameras in various sectors. Their ability to capture detailed and accurate depth images in real-time has already transformed numerous industries, and they have the potential to improve many aspects of our daily lives in the future.
